Name: Heelguard Stainless Steel Driveway Drain & Grate - 140 x 125mm
Brand: Buda
SKU: 140heel1
Price: 440.0 AUD
Availability: InStock

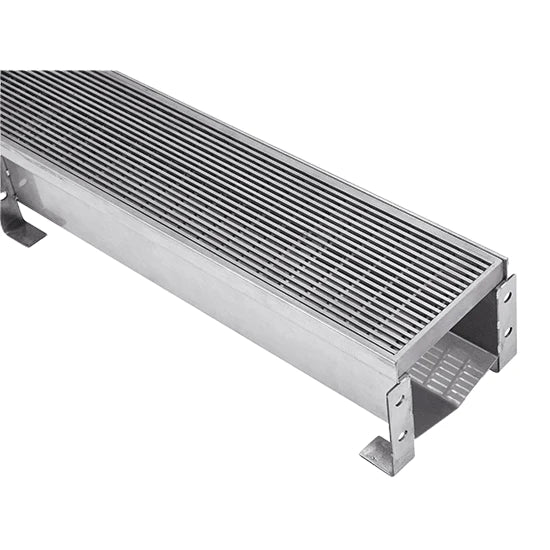

Heelguard Stainless Steel Driveway Drain & Grate - 140 x 125mm

Price

Size

140mm x 125mm

Length

1000mm

2000mm

3000mm

Quantity

Tax included. Shipping calculated at checkout.

[{"id":40007183859821,"title":"140mm x 125mm \/ 1000mm","option1":"140mm x 125mm","option2":"1000mm","option3":null,"sku":"140heel1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Heelguard Stainless Steel Driveway Drain \u0026 Grate - 140 x 125mm - 140mm x 125mm \/ 1000mm","public_title":"140mm x 125mm \/ 1000mm","options":["140mm x 125mm","1000mm"],"price":44000,"weight":9000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40007183892589,"title":"140mm x 125mm \/ 2000mm","option1":"140mm x 125mm","option2":"2000mm","option3":null,"sku":"140heel2-BLKY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Heelguard Stainless Steel Driveway Drain \u0026 Grate - 140 x 125mm - 140mm x 125mm \/ 2000mm","public_title":"140mm x 125mm \/ 2000mm","options":["140mm x 125mm","2000mm"],"price":88000,"weight":18000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40007183925357,"title":"140mm x 125mm \/ 3000mm","option1":"140mm x 125mm","option2":"3000mm","option3":null,"sku":"140heel3-BLKY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Heelguard Stainless Steel Driveway Drain \u0026 Grate - 140 x 125mm - 140mm x 125mm \/ 3000mm","public_title":"140mm x 125mm \/ 3000mm","options":["140mm x 125mm","3000mm"],"price":132000,"weight":27000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}]

316 Stainless Steel

Free In-Store Pickup from our Belmore Warehouse

Reliable Shipping Australia-Wide

Secure payments

In stock, ready to ship
Inventory on the way

These products are recommended for external use.
Looking for an external custom grate, corners or something customised? Let us know here.
Proudly Australian Designed and made to Australian Standards
End caps, Joiners, Outlets and Accessories to suit Sold Separately.

Full range of Aqualuna External Grates and Drains

We have a full range of external stainless steel grates used for patios, pools, driveways and walkways. We have various different sizes and styles available.
Each sold in set standard lengths with accessories such as end caps, joiners and outlets all sold separately.
Using our U shaped joiners you are able to join as many lengths as you need and run these stylish grates across multiple metres.
The 140mm wide and 200mm wide are joined together with fixing brackets welded to the base, it's as simple as bolting together therefore joiners are not necessary.
The outlet position is your discretion, itâ€™s a matter of cutting it out in your desired location. (Outlet sold separately).
The drain base comes with a V fold in base to aid water flow.
We also have some corners available in some of these sizes. Contact us to see what we have in stock!

Heelguard

A stylish wedge wire pattern grate

Available Sizes	Class	Length in Meters	Lines Pattern top	Healguard Pattern top
20mm deep x 85mm wide	A	2	Drawing	Drawing
40mm deep x 85mm wide	A	1,2	Drawing	Drawing
60mm deep x 110mm wide	A	1,2	N/A	Drawing
125mm deep and bottom 140mm wide	A	1,2,3	N/A	Drawing
170mm deep and bottom 200mm wide	B	2,3	N/A	Drawing

Please note, the 76mm outlet just fits on the bottom of the 110mm wide x 60mm deep and may need the flange cut to fit it perfectly on the base.

Heelguard Grate Only

We also stock 1-metre Heelguard grate only in both the 75mm wide x 20mm deep and 100mm wide x 20mm deep, both only in 1-metre lengths.

Download Brochure

To find our more information on this and other products visit either the Brochures or Drawings page.

Stainless Steel Grates & Drains Maintenance: Download PDF

Shower Drain Warranty: Download PDF

So long as this item is in stock, its is usually ready to dispatch next-day. (excludes custom items)

This item is stocked and shipped from our Belmore Warehouse.
