Telpost Adjustable Steel Post Support
SKU: ADJPOST-STD-AT1
Smart Telpost™ is designed to take the stress out of getting steel posts at just the right height and can be used to support either steel beams or timber beams in a huge range of applications. The Smart Telpost™ are adjustable to the below heights and are fully hot-dip galvanised to Australian Standards.
- Type A: 1940-3350mm
- Type B: 2700-4100mm
- Type C: 3900-5300mm

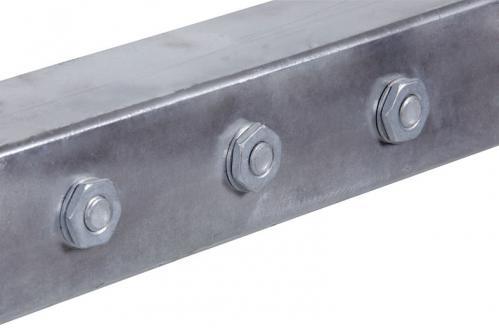

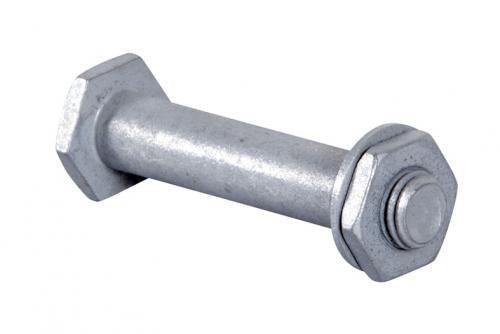

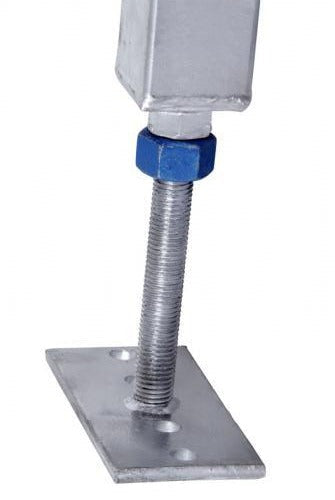

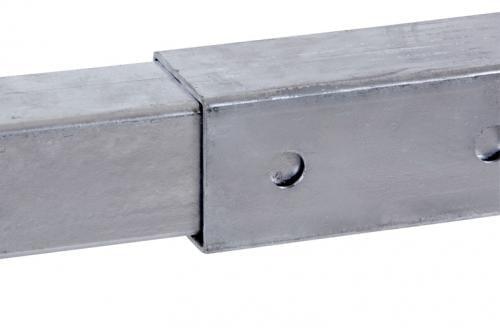

Smart Telpost™ uses an M30 threaded rod at the base for mm adjustment and 3 x M16 structural bolts for 100mm adjustment through the body. The special bolts fit within a 90mm timber frame.
Features:
-
Simply select the type of head you require with the body and you are set to go.
-
Simply select the body (AP1) and one of our custom heads from the list below.
-
Smart Telpost™ comes complete with all bolts and locking nuts as shown in the photo, heads must be ordered separately if required.

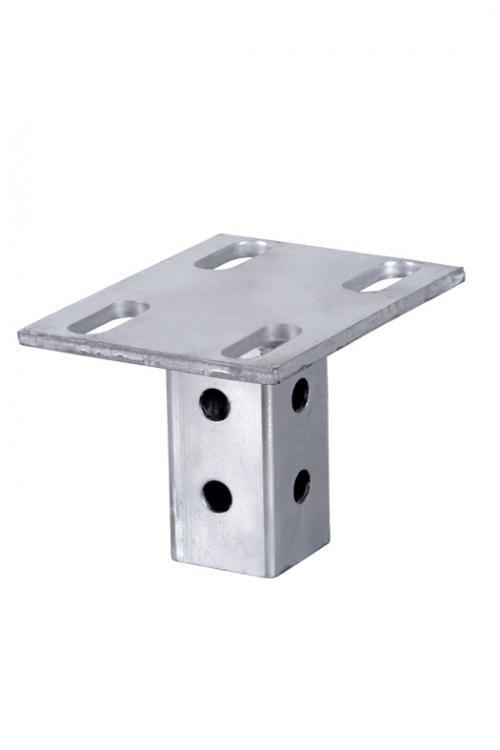

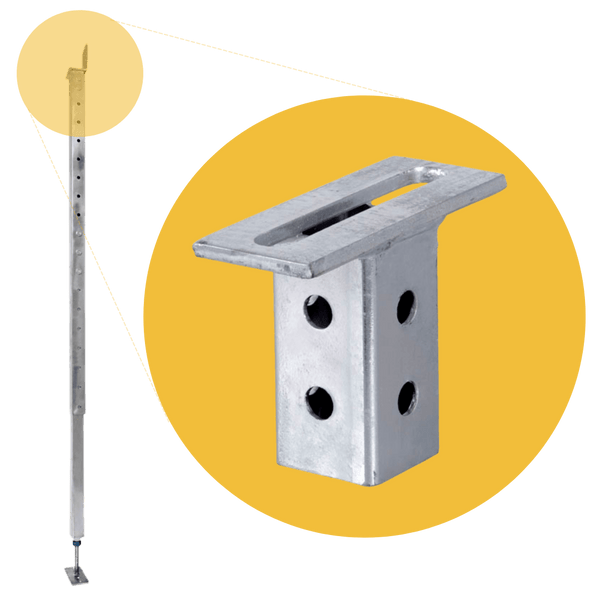

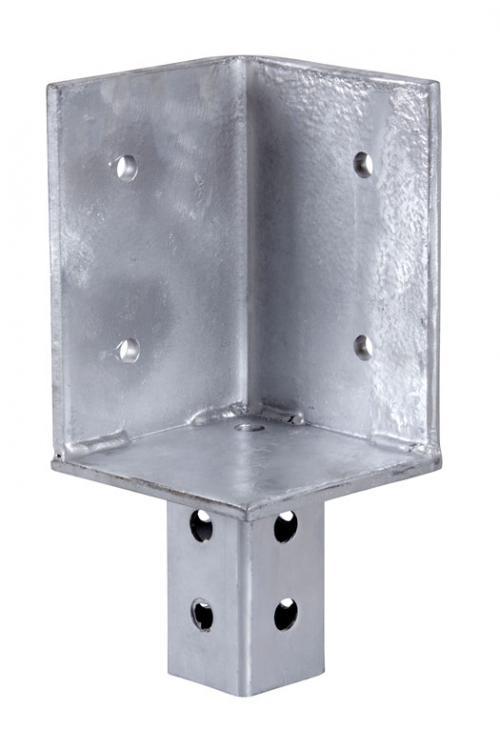

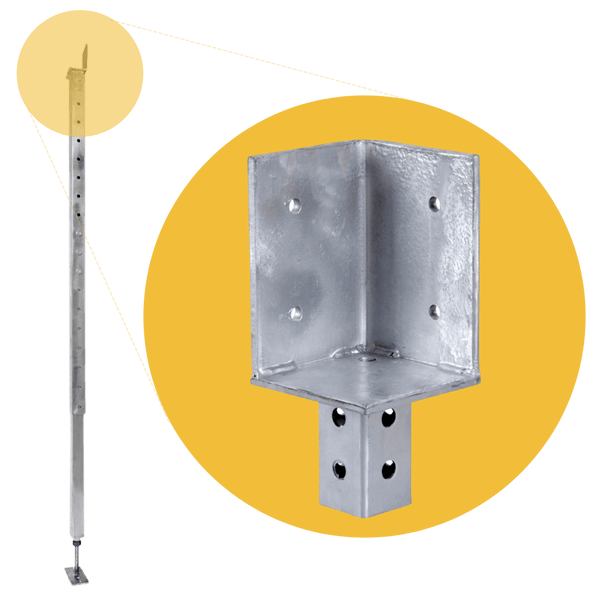

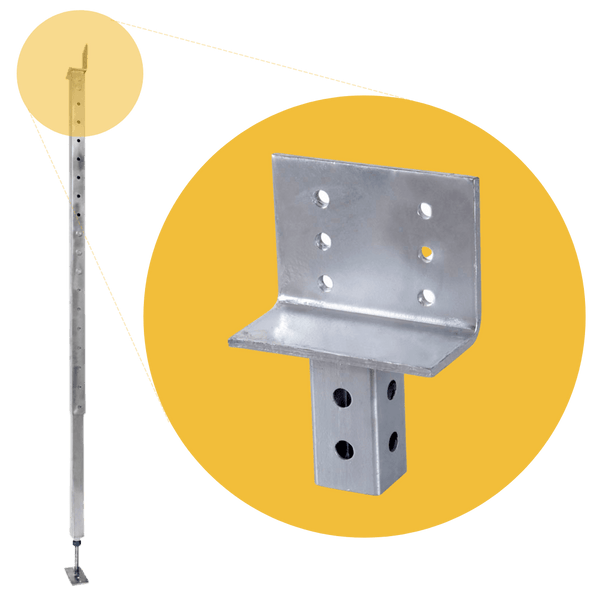

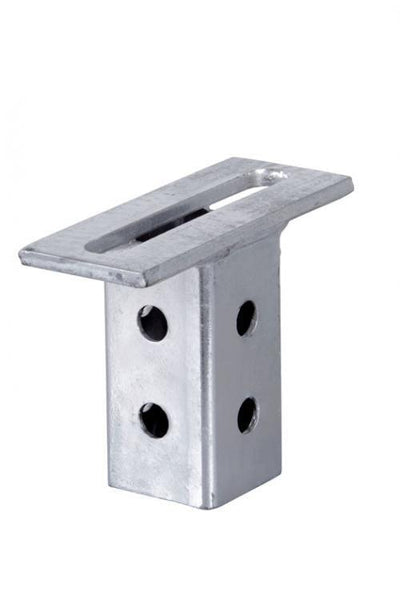

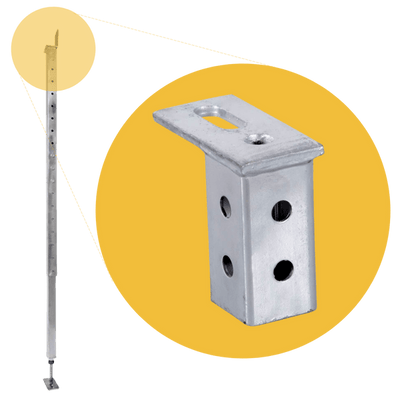

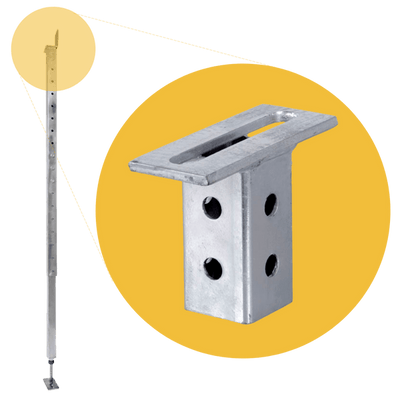

Head Types:

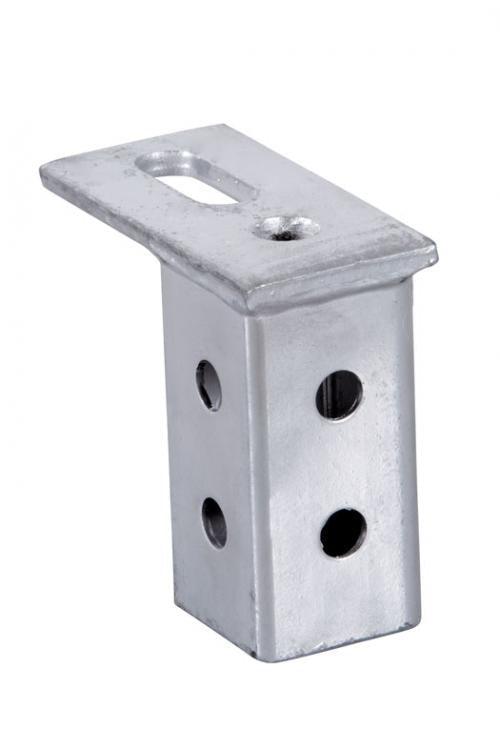

| Head Type | Used For | Suits |

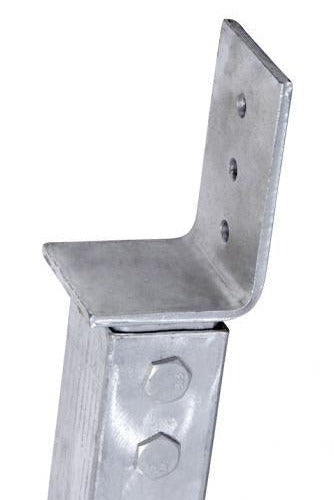

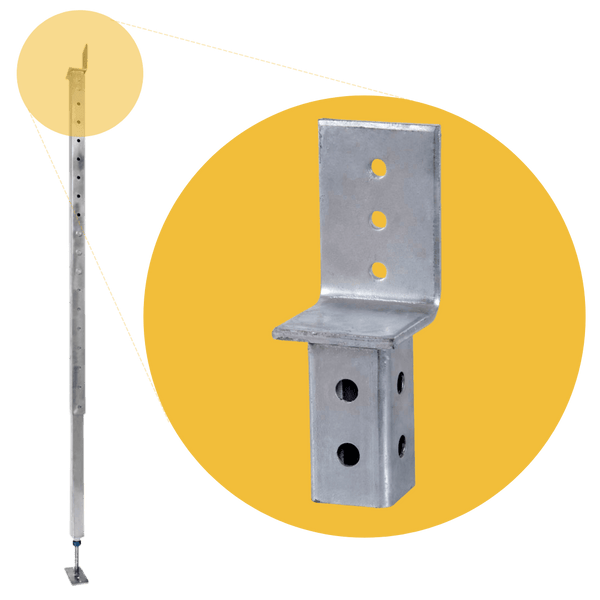

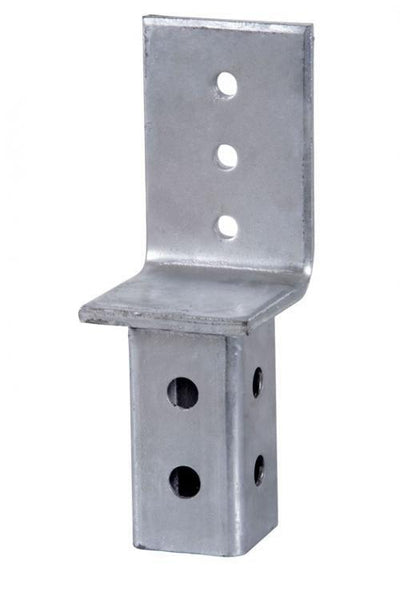

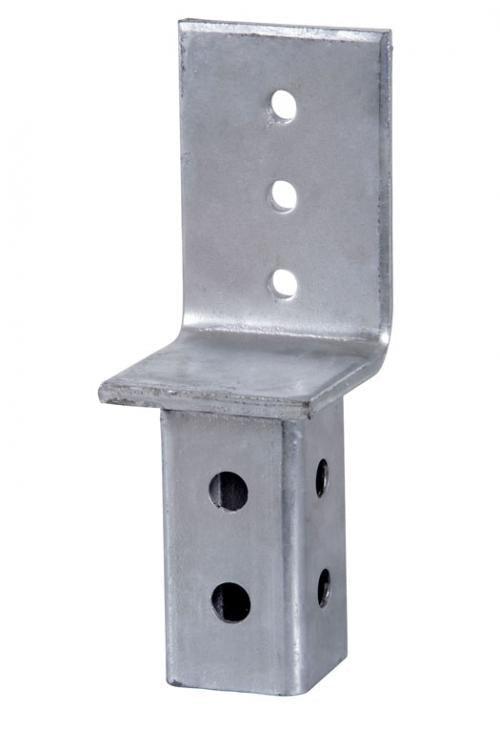

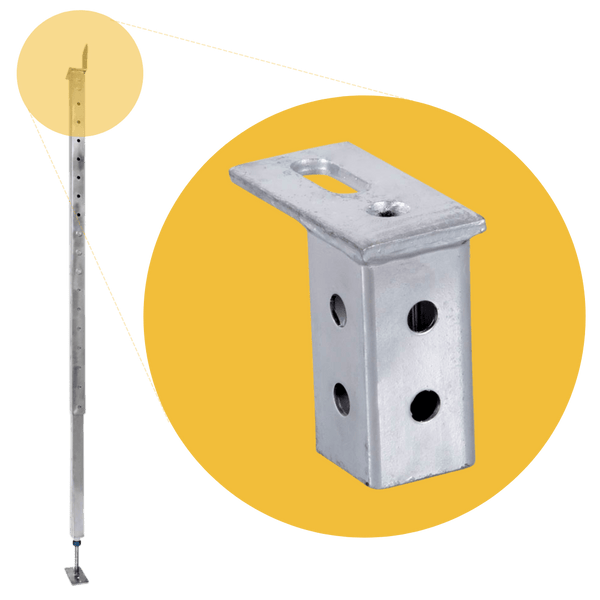

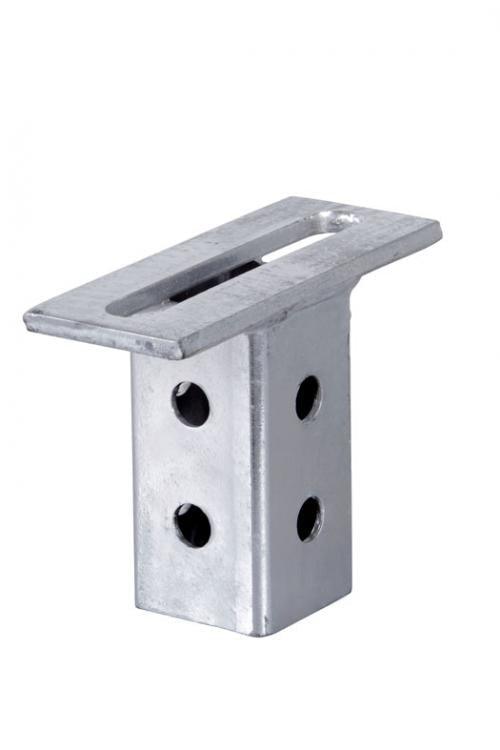

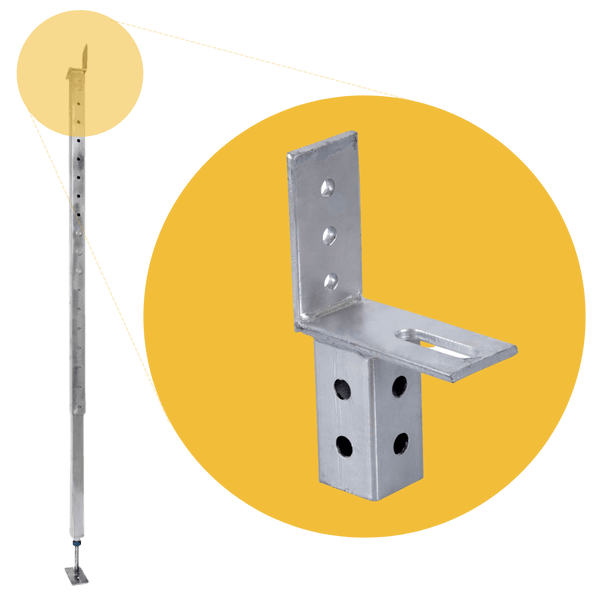

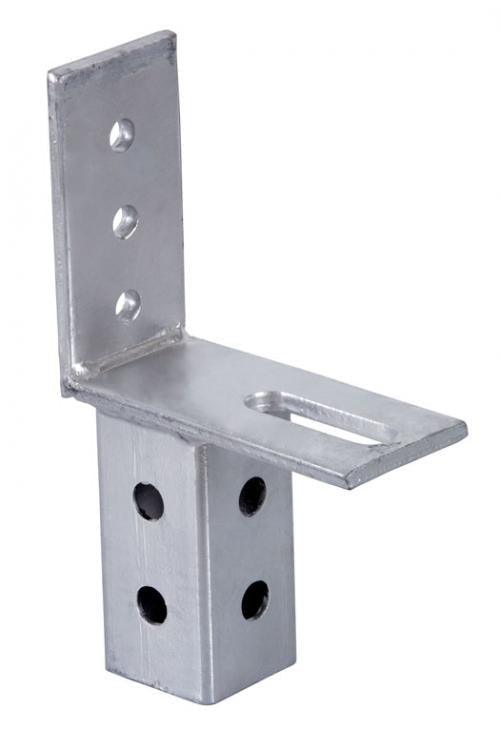

| AT1 | Used for connection to an LVL or timber beam | Suits tek or coach screws |

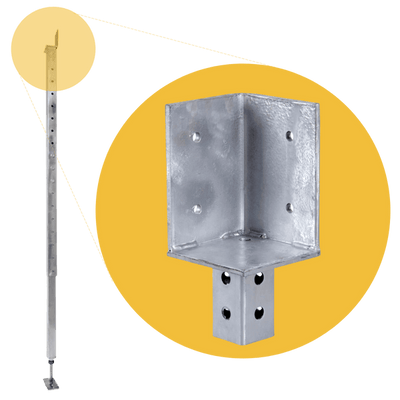

| AT2 | Used where two LVL's or timber beams join on a mitred corner | Suits tek screws or coach screws |

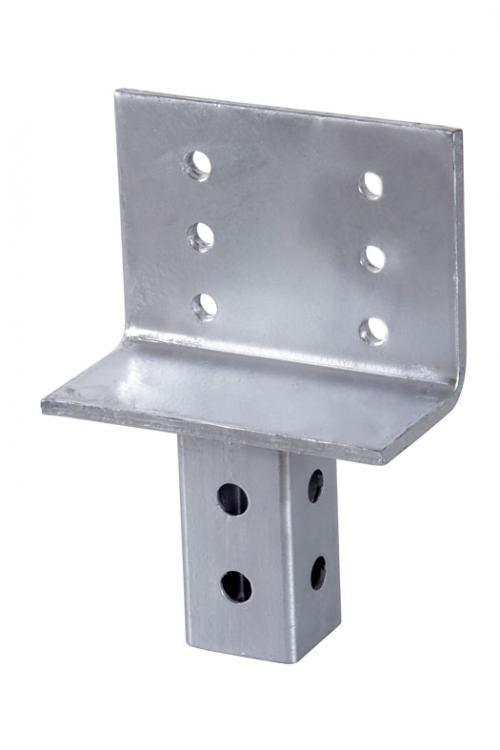

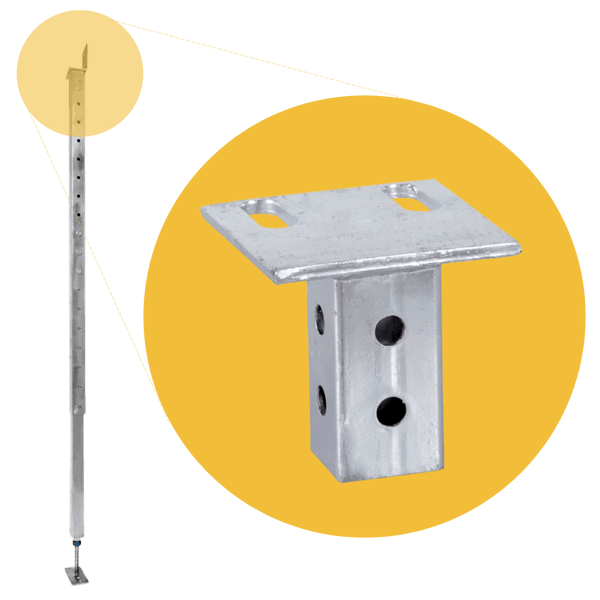

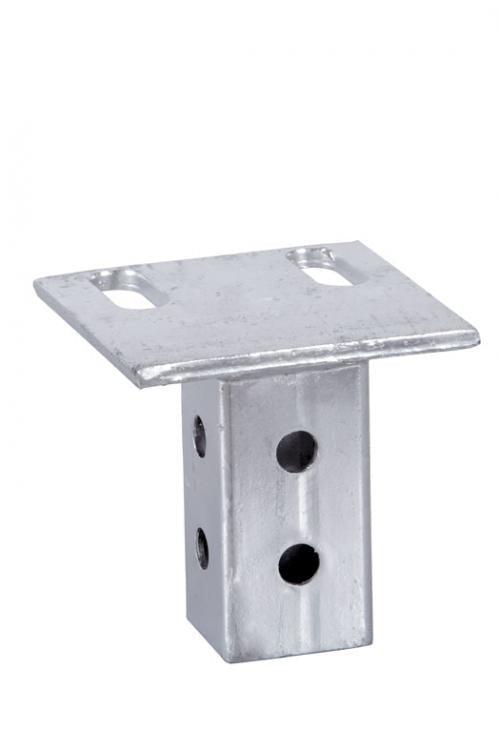

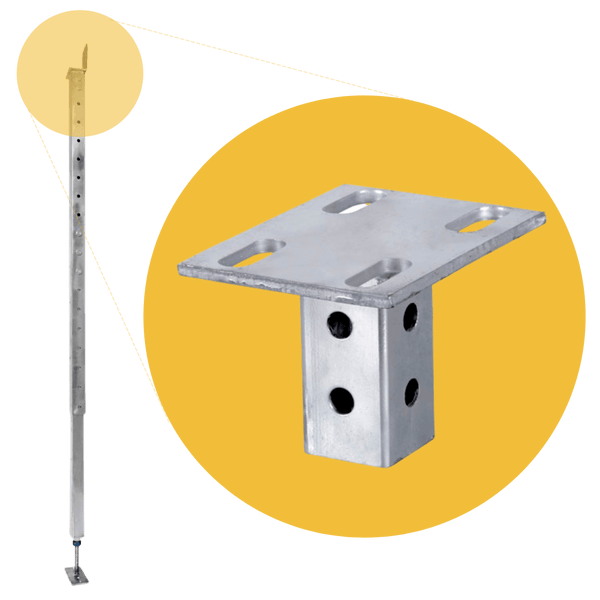

| AT3 | Used where 2 universal steel beams or columns connect over the post | Suits M16 bolts |
| AT4 | Used where 2 PFC's connect over the post | Suits M16 bolts |
| AT5 | Used for supporting one end of a universal beam or column | Suits M16 bolts |
| AT6 | Used for supporting one end of a PFC. AT6 is shorter than AT7 to avoid conflict with cornice | Suits M16 bolts |
| AT7 | Used for supporting one end of a PFC. Suits M16 bolts. AT7 is longer than AT6 so cannot be used where it may interfere with cornice | |

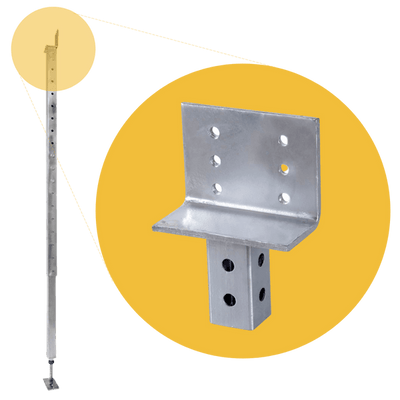

| AT8 | Dual connection for picking up an LVL or PFC. Especially good for alfresco areas where beam allocation may change | Suits M16 bolts, tek screws or coach screws |
| AT9 | Used where 2 LVL's connect in a straight line | Suits tek screws or coach screws |
IMPORTANT: THE SMART TELPOST™ COMES WITH AN OPEN-TOP PRE-DRILLED TO SUIT OUR SMART TELPOST™ HEADS. YOU MUST ORDER THE SUITABLE SMART TELPOST™ HEAD FROM THE LIST ALONG WITH THE SMART TELPOST™ BODY. ALL HEADS COME WITH THE CORRECT BOLTS TO FIT THEM TO THE BODY.
To find our more information on this product visit either the Brochures or Drawings page.
Lintel Load Tables: Download PDF
Due to the nature of this item, we currently only ship this item to NSW and the ACT*. For delivery costs, please use the delivery calculator on the checkout page.
*Delivery to remote areas of NSW or ACT may not be suitable for our delivery trucks. Please contact us prior to ordering should you have any concerns.
This item is stocked at our St Marys Warehouse.
