Heelguard Grate Only (Stainless Steel) - Steel Builders

SKU: 100sheel
External Stainless Steel Grate Only - Heelguard Pattern (Grate Only) - Steel Builders
External Stainless Steel Grate Only - Heelguard Pattern (Grate Only) - Steel Builders

Heelguard Grate Only (Stainless Steel) - Steel Builders

SKU: 100sheel
Regular price $220.00
Tax included. Shipping calculated at checkout.
  • 316 Stainless Steel
  • Free In-Store Pickup from our Belmore Warehouse
  • Reliable Shipping Australia-Wide
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way
  • These products are recommended for external use.
  • Looking for an external custom grate, corners or something customised? Let us know here.

  • Proudly Australian Designed and made to Australian Standards
  • End caps, Joiners, Outlets and Accessories to suit are sold separately.

Full range of Aqualuna External Grates and Drains

  • We have a full range of external stainless steel grates used for patios, pools, driveways and walkways. We have various different sizes and styles available.
  • Each sold in set standard lengths with accessories such as end caps, joiners and outlets all sold separately.
  • Using our U shaped joiners you are able to join as many lengths as you need and run these stylish grates across multiple metres.
  • The 140mm wide and 200mm wide are joined together with fixing brackets welded to the base, it's as simple as bolting together therefore joiners are not necessary.
  • The outlet position is your discretion, it's a matter of cutting it out in your desired location. (Outlet sold separately).
  • The drain base comes with a V fold in base to aid water flow.
  • We also have some corners available in some of these sizes. Contact us to see what we have in stock!

316 Stainless Steel:

  • This product is made from marine grade 316 stainless steel which is recommended for lifetime durability for internally and externally use.
  • 316 stainless steel is typically used on balconies, walkways, driveways, around pool areas, gardens and many more external applications.

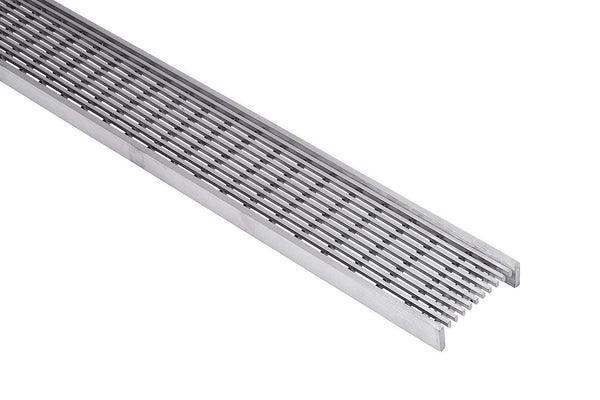

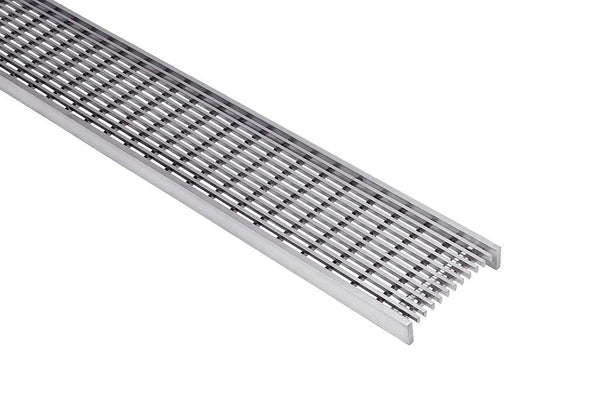

    • A stylish wedge wire pattern grate

    The advantages of our Stainless Steel Heelguard include:

    • 3mm Wedge Wire with 4mm Aperture
    • 5mm (x20mm deep) edge bar all the way around the grate - eliminating any sharp edges
    • Crossbars every 25mm, not touching the base of drain the base of the drains allowing plenty of water flow
    • Tapered cross bars reduces the buildup of dirt & grime
    • Heel & Pet Friendly
    • Please note, the 76mm outlet just fits on the bottom of the 110mm wide x 60mm deep and may need the flange cut to fit it perfectly on the base.

    Heelguard Grate Only

    • We also stock 1-metre Heelguard grate only in both the 75mm wide x 20mm deep and 100mm wide x 20mm deep, both only in 1-metre lengths.

    Application/Usage Grades:

    • Class A - Light Duty / Suitable for Pedestrian Traffic ONLY
    • Class B - Medium Duty / Suitable for Pedestrian, Car and Light Truck Traffic
    • Class C - Heavy Duty / Pedestrian, Car and Heavy Truck Traffic

    To be safe, we always recommend going for the heavier duty if you are unsure between 2 options.
