Telpost Adjustable Steel Post Support

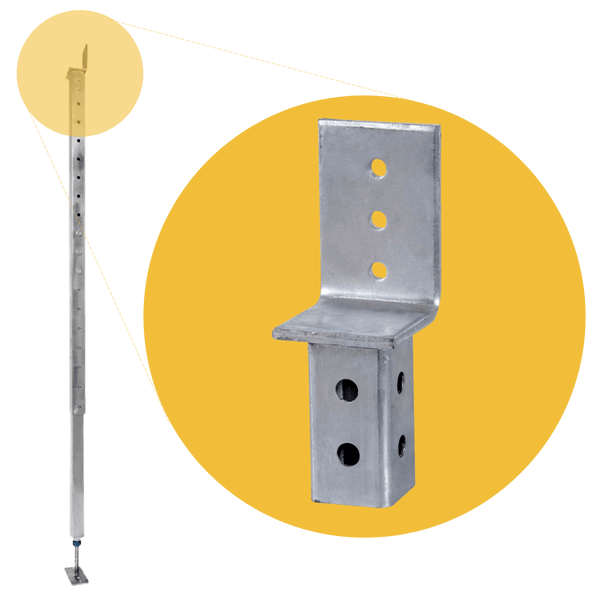

Smart Telpost™ is designed to take the stress out of getting steel posts at just the right height and can be used to support either steel beams or timber beams in a huge range of applications. The Smart Telpost™ are adjustable to the below heights and are fully hot-dip galvanised to Australian Standards.
- Type A: 1940-3350mm
- Type B: 2700-4100mm
- Type C: 3900-5300mm

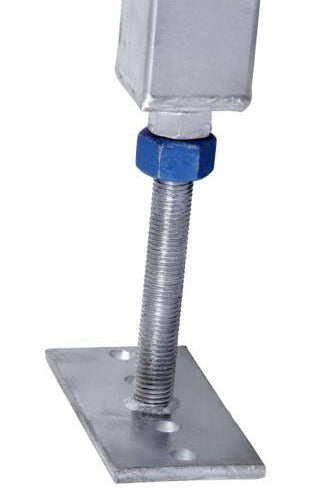

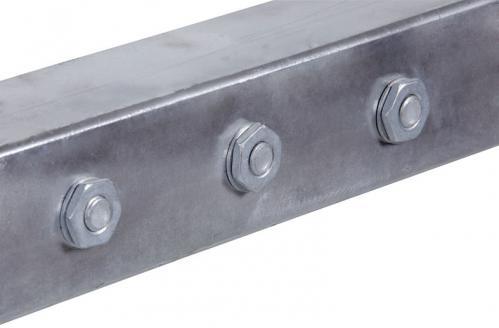

Smart Telpost™ uses an M30 threaded rod at the base for mm adjustment and 3 x M16 structural bolts for 100mm adjustment through the body. The special bolts fit within a 90mm timber frame.
Features:
-
Simply select the type of head you require with the body and you are set to go.
-
Simply select the body (AP1) and one of our custom heads from the list below.
-
Smart Telpost™ comes complete with all bolts and locking nuts as shown in the photo, heads must be ordered separately if required.

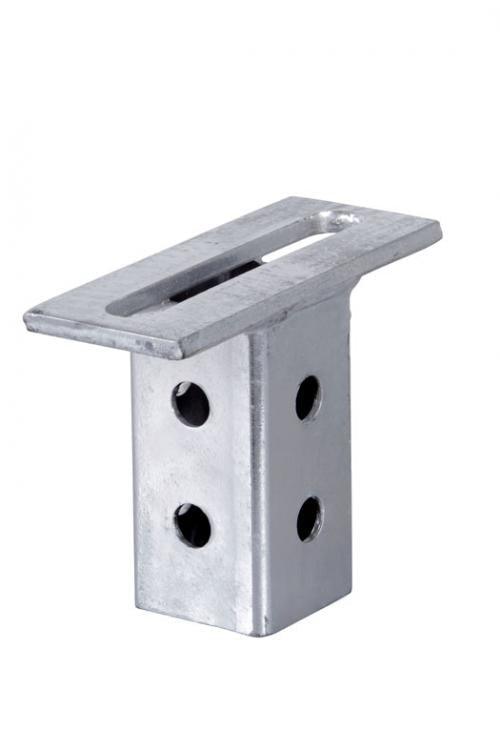

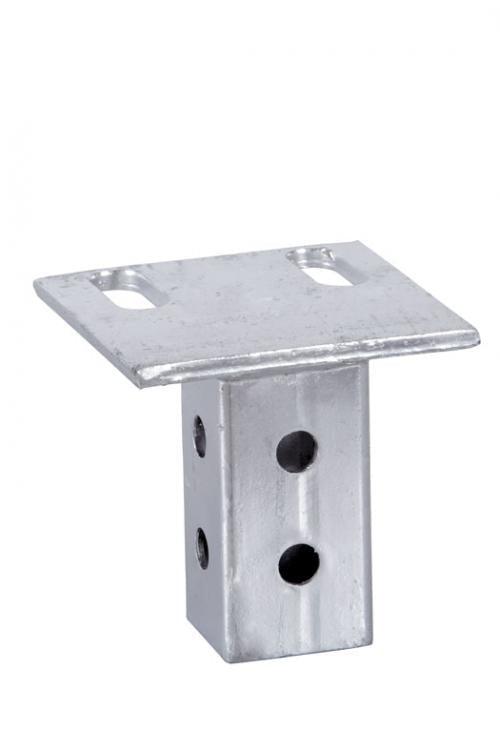

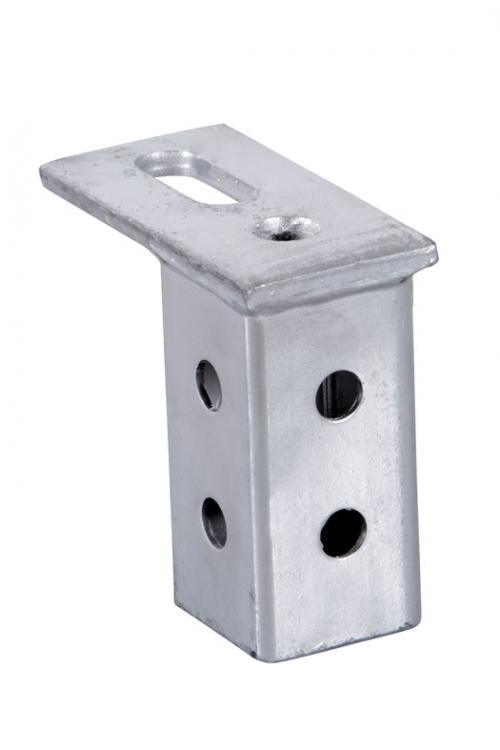

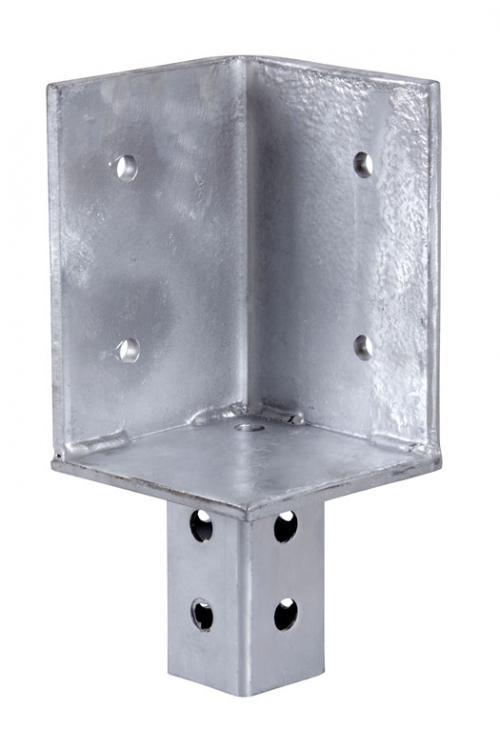

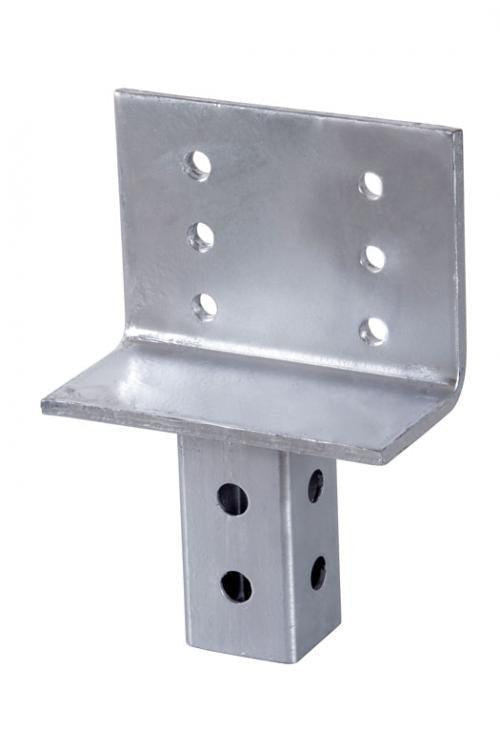

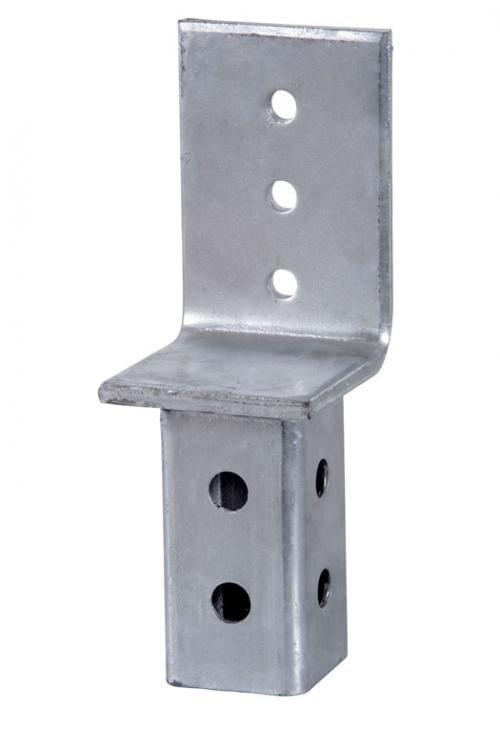

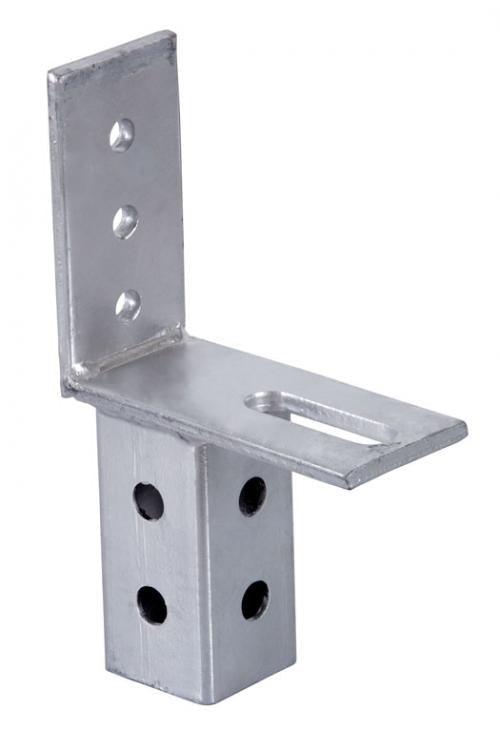

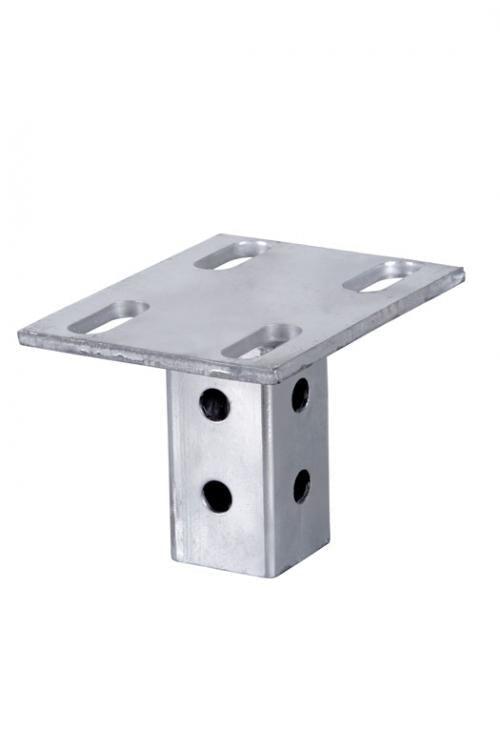

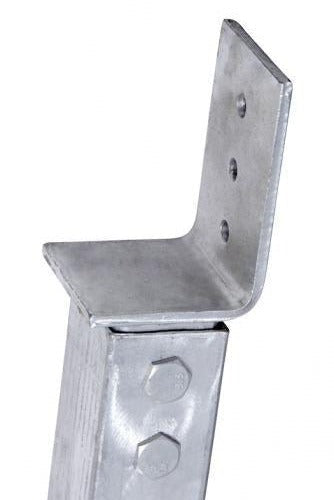

Head Types:
| Head Type | Used For | Suits |
| AT1 | Used for connection to an LVL or timber beam | Suits tek or coach screws |
| AT2 | Used where two LVL's or timber beams join on a mitred corner | Suits tek screws or coach screws |
| AT3 | Used where 2 universal steel beams or columns connect over the post | Suits M16 bolts |
| AT4 | Used where 2 PFC's connect over the post | Suits M16 bolts |
| AT5 | Used for supporting one end of a universal beam or column | Suits M16 bolts |
| AT6 | Used for supporting one end of a PFC. AT6 is shorter than AT7 to avoid conflict with cornice | Suits M16 bolts |
| AT7 | Used for supporting one end of a PFC. Suits M16 bolts. AT7 is longer than AT6 so cannot be used where it may interfere with cornice | |
| AT8 | Dual connection for picking up an LVL or PFC. Especially good for alfresco areas where beam allocation may change | Suits M16 bolts, tek screws or coach screws |
| AT9 | Used where 2 LVL's connect in a straight line | Suits tek screws or coach screws |
IMPORTANT: THE SMART TELPOST™ COMES WITH AN OPEN-TOP PRE-DRILLED TO SUIT OUR SMART TELPOST™ HEADS. YOU MUST ORDER THE SUITABLE SMART TELPOST™ HEAD FROM THE LIST ALONG WITH THE SMART TELPOST™ BODY. ALL HEADS COME WITH THE CORRECT BOLTS TO FIT THEM TO THE BODY.
