Chrome Tile Insert Drain Floor Waste

SKU: 100MM-100tile-50SQCP
Regular price $53.90
/
Size
Outlet Size
Tax included. Shipping calculated at checkout.
  • Chrome Plated Solid Brass (AS 1192-2004)
  • Free In-Store Pickup from our Belmore Warehouse
  • Reliable Shipping Australia-Wide
  • Secure payments
  • In stock, ready to ship

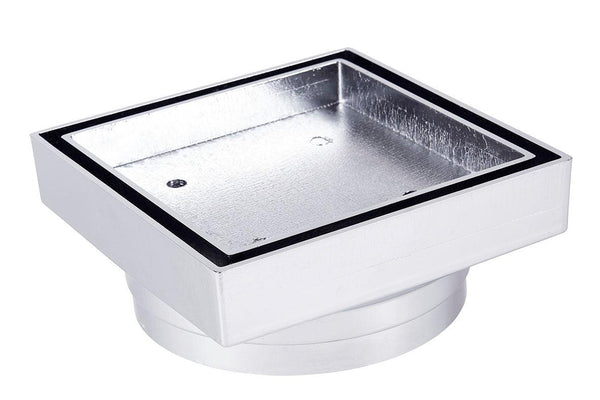

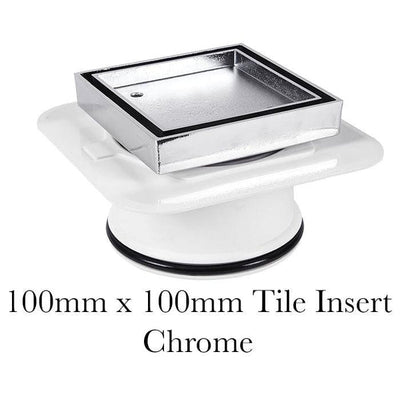

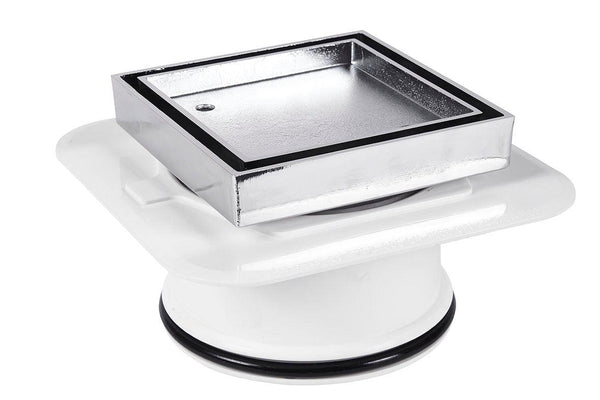

100 x 100 Tile Insert Chrome

Mega Bermuda Tile Insert Drain - the water just disappears without a trace. Smallest depth. Comes with leak control flange.
The Bermuda mega floor grate comes with megaflex leak control flange and undercap mortar exclusion device.
The megaflex flange allows height and tilt adjustment while the undercap tear out section stops mortar and dirt clogging pipes.
The megaflex flange securely enables positive engagement with your waterproof membrane.

  • Square 100mm. Suit 81.5mm Tile insert. Outlet to suit 50mm, 80mm or 100mm Pipe. Depth 22.8mm
  • Supplied with Strainer. Note strainer will decrease flow rate.
  • Tile insert manufactured from solid brass. Finish Chrome Plate.
  • Product Drawing

Our Small Floor Waste will suit a wide range of drainage needs. These small shower grates provide minimal visual impact and a sleek finish to any bathroom or shower. Our Small Floor Waste Products are available in various patterns and sizes to suit a wide range of uses.

110 x 110 Classic Grate

  • 110mm x 110mm Brass Floor Waste - Chrome Plate Finish
  • Classic style grate to suit 100mm Waste.

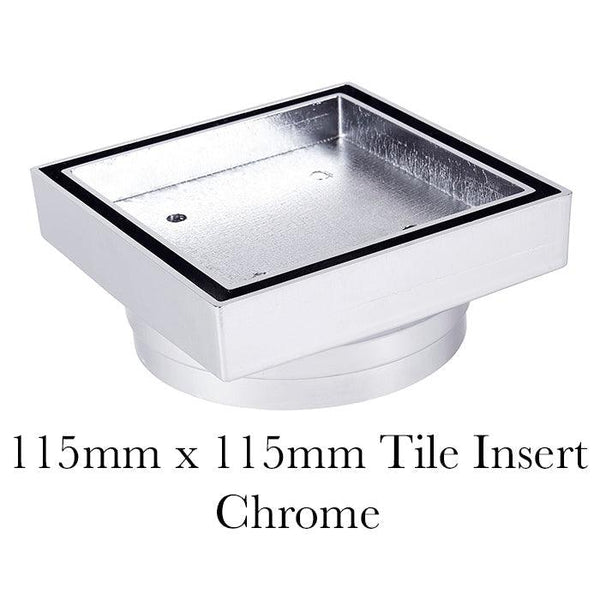

115 x 115 Designer Style / Tile Insert

  • 115mm x 115mm - Please click on product drawings to see exact depth of each style grate available in a range of outlet sizes.
Product Drawings Outlet Sizes Available
Lines Pattern 95mm, 75mm and 45mm
Square Pattern 95mm, 75mm and 45mm
Heelguard Pattern 95mm and 45mm
Stainless Steel Tile Insert 95mm, 75mm/80mm and 45mm
Chrome Tile Insert 95mm and 75mm
Black Tile Insert 95mm and 45mm
Black Heelguard 95mm and 45mm

115 x 115 Black Finish Small Floor Wastes

  • A stylish yet affordable Black Stainless Steel Small Floor Waste/Drain range is available in both tile insert and heelguard pattern.
  • These are 316 stainless steel coated with a Teflon coating to give them a black finish.

Please note:

  • Black version does not have the 80mm outlet option, only the 50 and 100mm options shown in the drawings.
  • The grate in the heelguard is slightly smaller to ensure it does not scrape off the black coating when removed and reinserted into the base for cleaning.

200mm x 200mm x 30mm Heelguard

{{widget type="Magento\Cms\Block\Widget\Block" template="widget/static_block/default.phtml" block_id="75"}}

300mm x 300mm x 60mm Heelguard

Download Brochure

To find our more information on this and other products visit either the Brochures or Drawings page.

Shower Drain Warranty: Download PDF

So long as this item is in stock, its is usually ready to dispatch next-day. (excludes custom items)

This item is stocked and shipped from our Belmore Warehouse.

For more information, visit our Delivery FAQs page.
