Full range of Aqualuna External Grates and Drains
- We have a full range of external stainless steel grates used for patios, pools, driveways and walkways. We have various different sizes and styles available.
- Each sold in set standard lengths with accessories such as end caps, joiners and outlets all sold separately.
- Using our U shaped joiners you are able to join as many lengths as you need and run these stylish grates across multiple metres.
- The 140mm wide and 200mm wide are joined together with fixing brackets welded to the base, it's as simple as bolting together therefore joiners are not necessary.
- The outlet position is your discretion, itâ€™s a matter of cutting it out in your desired location. (Outlet sold separately).
- The drain base comes with a V fold in base to aid water flow.
- We also have some corners available in some of these sizes. Contact us to see what we have in stock!

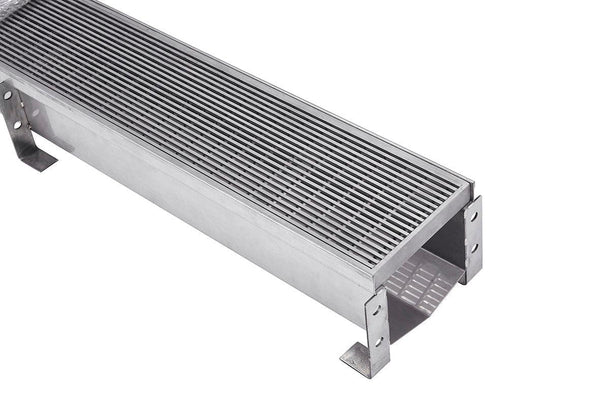

- A stylish wedge wire pattern grate
|Available Sizes||Class||Length in Meters||Lines Pattern top||Healguard Pattern top|
|20mm deep x 85mm wide||A||2||Drawing||Drawing|
|40mm deep x 85mm wide||A||1,2||Drawing||Drawing|
|60mm deep x 110mm wide||A/B||1,2||N/A||Drawing|
|125mm deep and bottom 140mm wide||B||1,2,3||N/A||Drawing|
|170mm deep and bottom 200mm wide||B||2,3||N/A||Drawing|
- Please note, the 76mm outlet just fits on the bottom of the 110mm wide x 60mm deep and may need the flange cut to fit it perfectly on the base.
Heelguard Grate Only
- We also stock 1-metre Heelguard grate only in both the 75mm wide x 20mm deep and 100mm wide x 20mm deep, both only in 1-metre lengths.
