Plastic Shower Drain Kit + Heelguard Grate

SKU: P307023H-BLKY
  • 316 Stainless Steel
  • Same-day Pickup from our Belmore Warehouse
  • Reliable Shipping Australia-Wide
  • Low stock - 2 items left
  • Inventory on the way
Regular price $543.00
/
Size
Length
Tax included. Shipping calculated at checkout.
  • These grates can be used Internally & Externally.
  • Proudly Australian Designed and made to Australian Standards

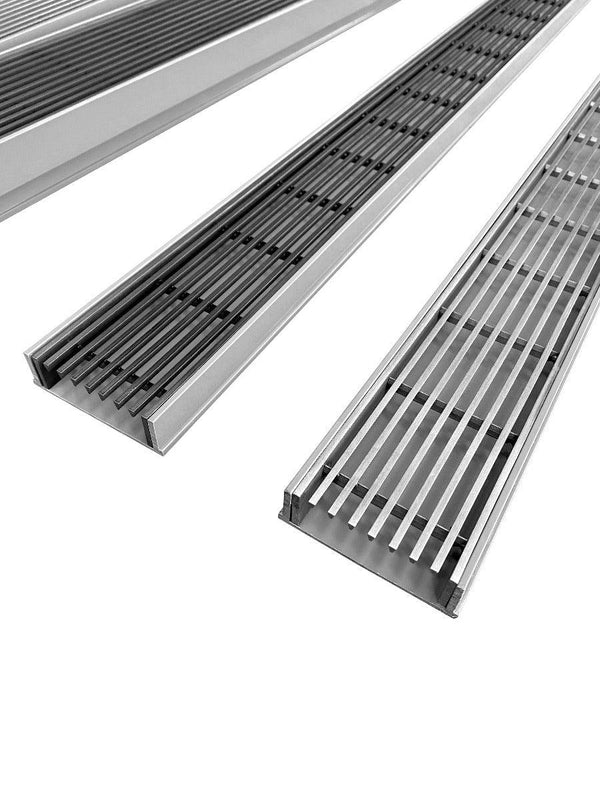

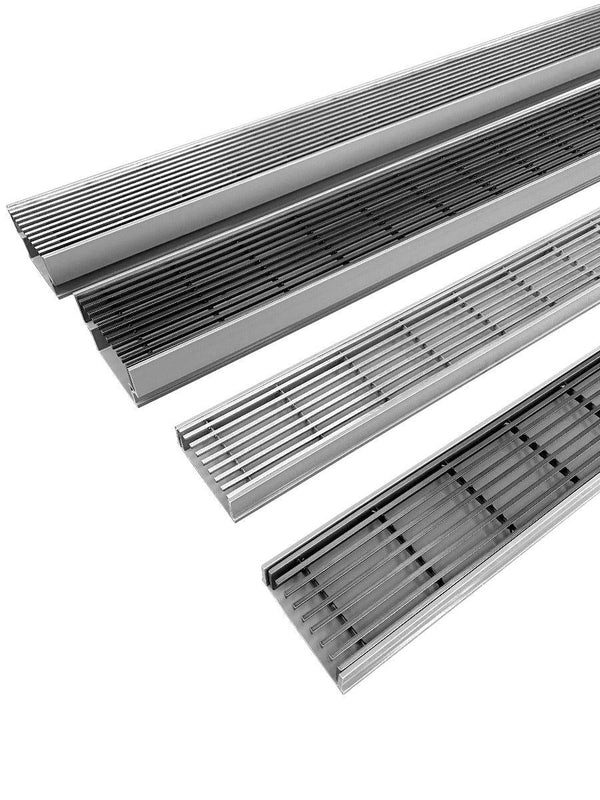

Looking for something with that stylish heelguard look but are on a budget? This is the perfect option as it has the functionality of the full stainless steel grates, however uses a plastic base instead.

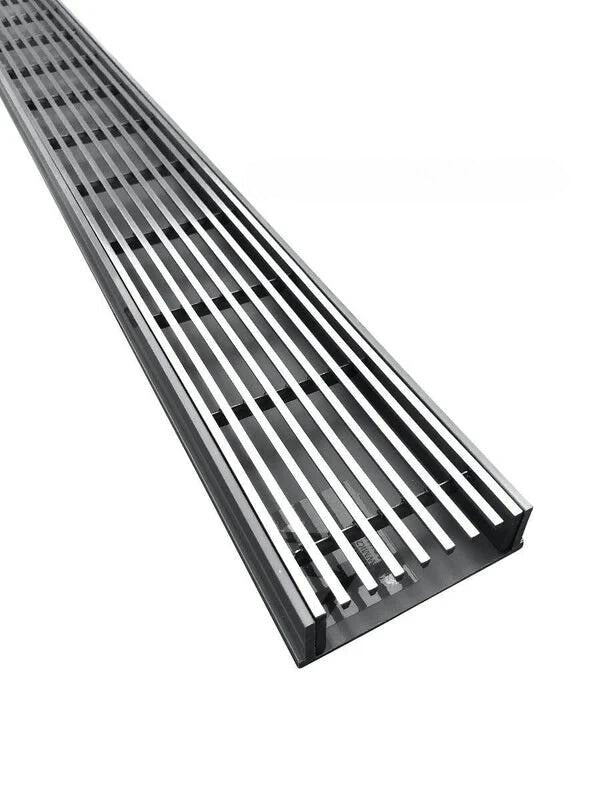

The heelguard tops of these grates are 316 stainless steel, sold with a plastic base.

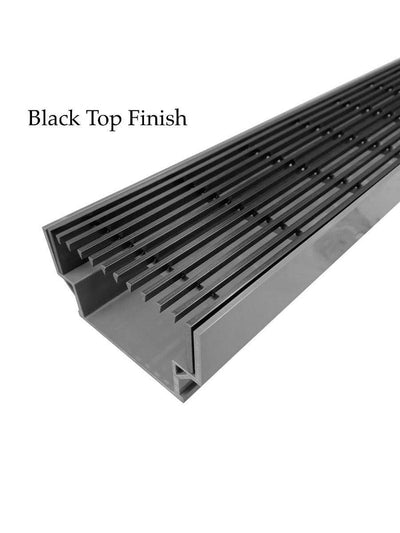

These kits are available with stainless steel finish or black finish grates. The Black Finish is created using the latest technology known as PVD (Physical Vapor Deposition) Coating.

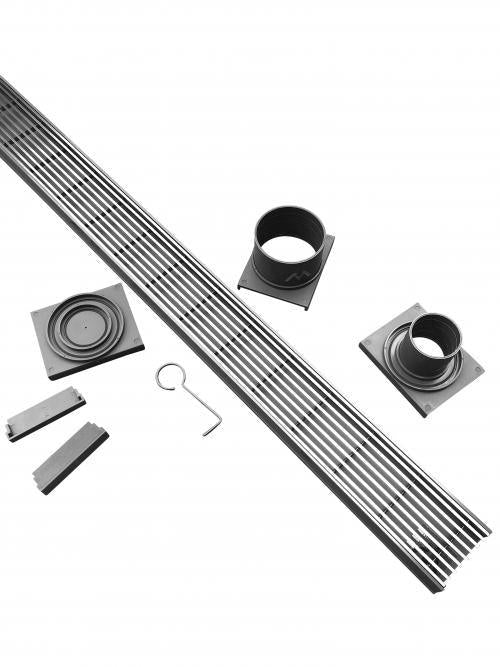

Each length sold includes an accessories pack with 2 end caps, 1 joiner and 2 outlets. These DIY kits make it simple and easy to install in any application.

These grates are Class A - some applications include but are not limited to around pools, walkways, garden areas and patios

Now available with a black grate in all 3 different sizes. Simply select the section you prefer, then the finish and the lengths you require.

These grates are Watermark Approved and available in 3 different sizes:

  • 70mm wide drain x 23mm deep (please note, upon installing the outlet on the base the drain will be approx 26mm deep) - the measurement at the top of the drain is 70mm, however there is a small lip on the base of the drain making the bottom overal width 75mm.
  • 95mm wide drain x 28mm deep (please note, upon installing the outlet on the base the drain will be approx 31mm deep) - the measurement at the top of the drain is 95mm, however there is a small lip on the base of the drain making the bottom overal width 100mm.
  • 95mm wide x 50mm deep (please note, upon installing the outlet on the base the drain will be approx 53mm deep)
  • Please click here to see drawings of the product.

Each size is available in the following standard lengths:

  • 1000mm long
  • 1500mm long (only available in Stainless Steel Finish 70mm wide x 23mm deep and 95mm wide x 28mm deep)
  • 2000mm long
  • 3000mm long

Accessories kit to suit 70mm wide x 23mm deep drain includes:

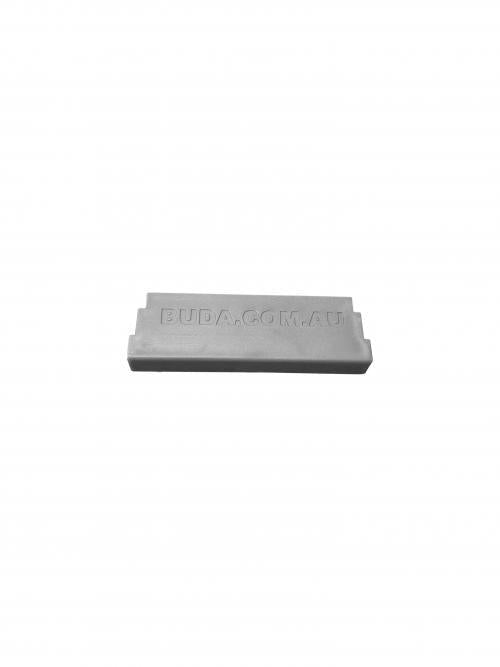

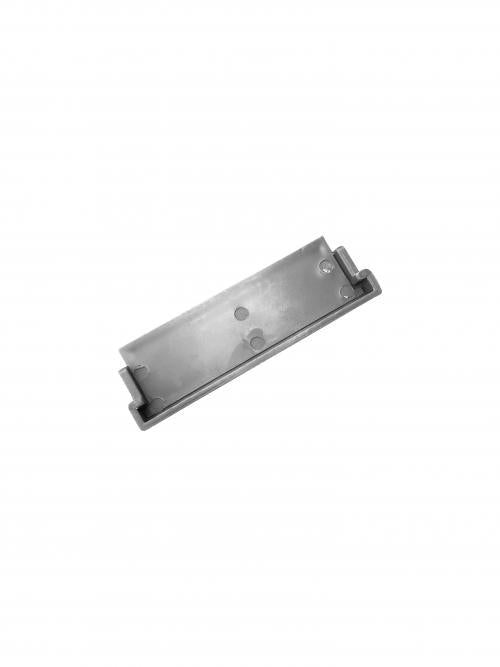

  • 2 x end caps to suit

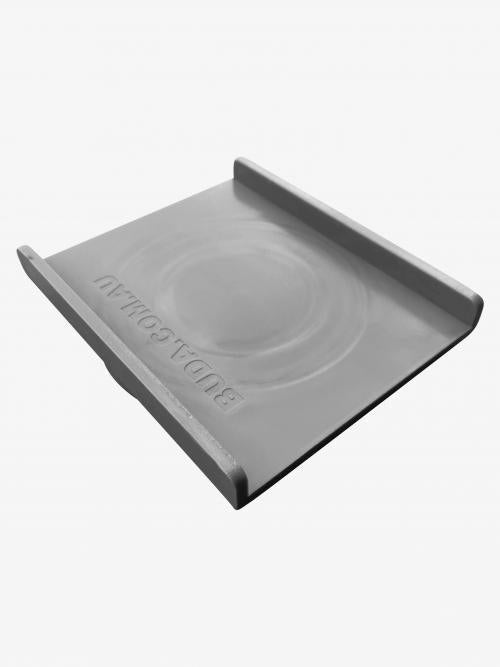

  • 1 x joiner to suit

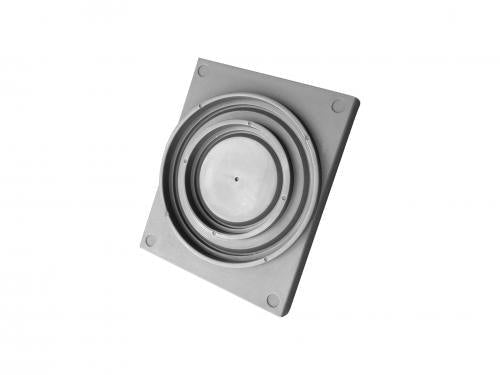

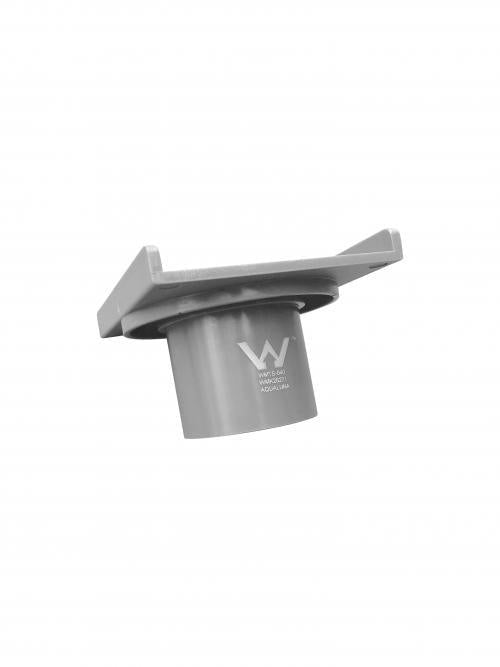

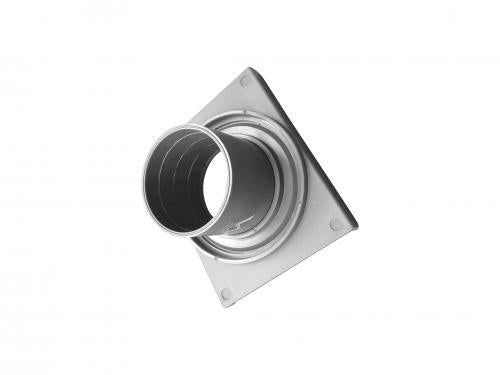

  • 1 x 50mm outlet (internal measurement 45mm/external measurement 50mm)

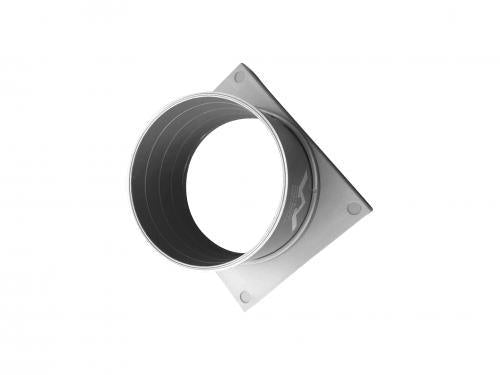

  • 1 x 75mm outlet (internal measurement 70mm/external measurement 75mm)
  • 1 x lifting tool
  • 1 x installation guide

Accessories kit to suit 95mm wide x 28mm deep drain includes:

  • 2 x end caps to suit
  • 1 x joiner to suit
  • 1 x 50mm outlet (internal measurement 45mm/external measurement 50mm)
  • 1 x 90mm outlet (internal measurement 80mm/external measurement 90mm)
  • 1 x lifting tool
  • 1 x installation guide

Accessories kit to suit 95mm wide x 50mm deep drain includes:

  • 2 x end caps to suit
  • 1 x joiner to suit
  • 1 x 50mm outlet (internal measurement 45mm/external measurement 50mm)
  • 1 x 75mm outlet (internal measurement 70mm/external measurement 75mm)
  • 1 x lifting tool
  • 1 x installation guide

The advantages of our Stainless Steel Heelguard include:

  • 3mm Wedge Wire with 4mm Aperture
  • 5mm (x20mm deep) edge bar all the way around the grate - eliminating any sharp edges
  • Cross bars every 25mm, not touching base of drain the base of the drains allowing plenty of water flow
  • Tapered cross bars reduces the buildup of dirt & grime
  • Heel & Pet Friendly

316 Stainless Steel:

  • This product is made from marine grade 316 stainless steel which is recommended for lifetime durability for internally and externally use.
  • 316 stainless steel is typically used on balconies, walkways, driveways, around pool areas, gardens and many more external applications.

Application/Usage Grades:

  • Class A - Light Duty / Suitable for Pedestrian Traffic ONLY
  • Class B - Medium Duty / Suitable for Pedestrian, Car and Light Truck Traffic
  • Class C - Heavy Duty / Pedestrian, Car and Heavy Truck Traffic

To be safe, we always recommend going for the heavier duty if you are unsure between 2 options.

: Download Brochure

To find our more information on this and other products visit either the Brochures or Drawings page.

Stainless Steel Grates & Drains Maintenance: Download PDF

Shower Drain Warranty: Download PDF
