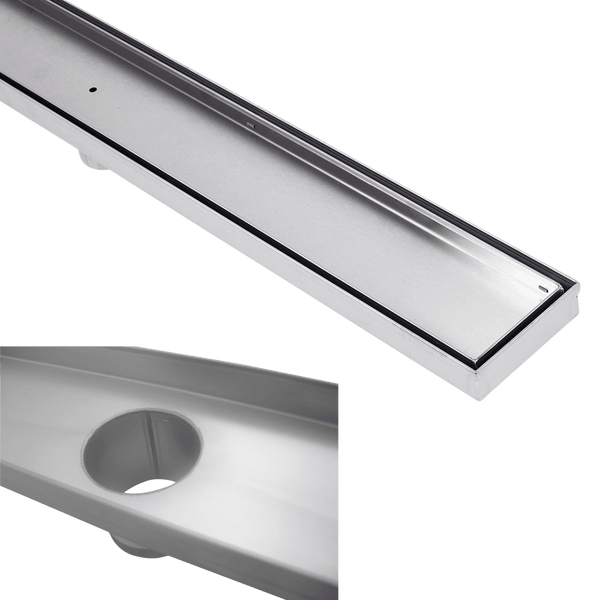

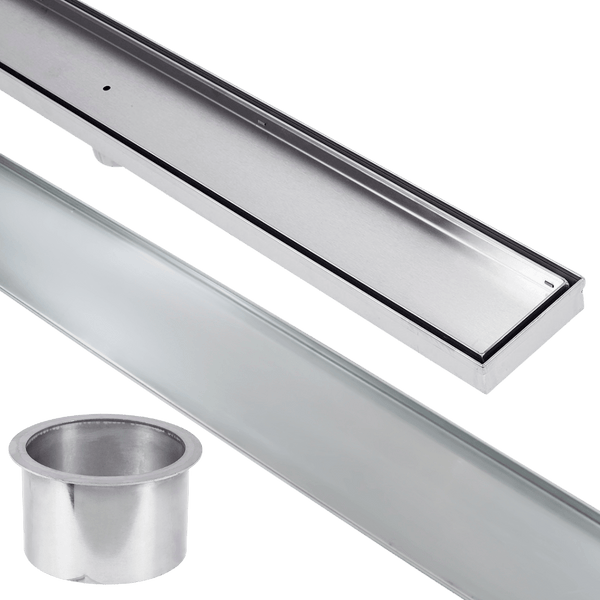

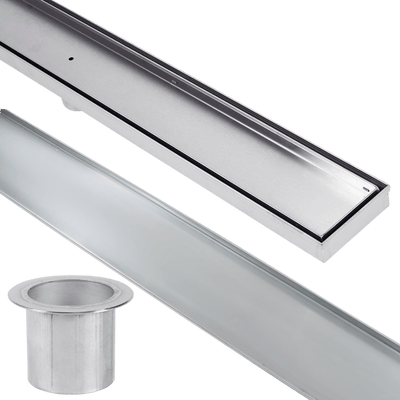

Tile Insert Stainless Steel Shower Grate & Drain - 70 x 20mm
SKU: l600w70-tile
Aqualuna Drains - Stainless Steel Grates and Drains
- Grate top is made from 1.5mm - 304 stainless steel.
- Our Heelguard pattern grates are made from 3mm Wedge Wire welded with cross braces and full edge bars around the perimetre.

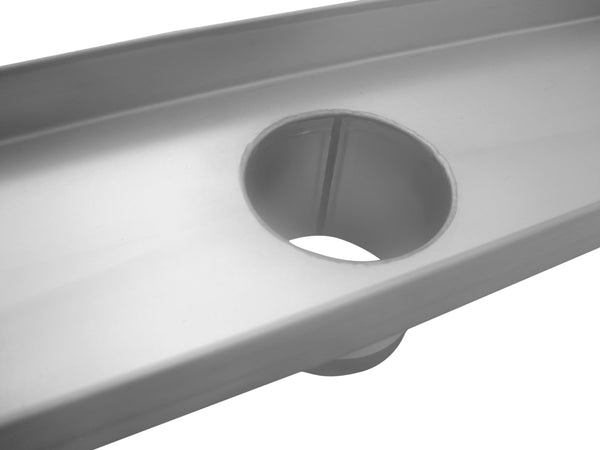

- Our drain bases come with folds in base to allow water to flow directly to outlet.
- Outlet is 50.8 OD. Outlet is in either the centre or end of the drain.
- All drain bases are fully welded and made from 304 stainless steel.
- DIY or customs do not have folds in the base towards the outlet which is weled onto the base.
When ordering, first choose your length. After choosing your length, then choose your width, pattern and outlets.
Various different lengths:
- 600mm all the way up to 1800mm
- We also have longer lengths available as well as custom lengths.
A range of different widths:
- 70mm, 85mm, 100mm
Depending on the width, various Depths:
- 22mm, 25mm, 30mm
*Tile Inserts in 100mm wide x 30mm deep
*Tile Inserts in 70mm wide x 25mm deep
Range of Outlet sizes, positions, DIY and custom:
Depending on the grate selected, you may have the option of
- Centre Outlet:50mm / 80mm Outlet in Centre of Drain
- End Outlet - 50mm from the end to the centre of the drain
- Custom Outlet: 38mm, 50mm, 76mm, 80mm, 95mm outlet options to be welded at the position you request
- DIY: Buy the outlet loose and either weld or glue it in where you like
To find our more information on this and other products visit either the Brochures or Drawings page.
Stainless Steel Grates & Drains Maintenance: Download PDF
Shower Drain Warranty: Download PDF
So long as this item is in stock, its is usually ready to dispatch next-day. (excludes custom items)
This item is stocked and shipped from our Belmore Warehouse.
For more information, visit our Delivery FAQs page.
