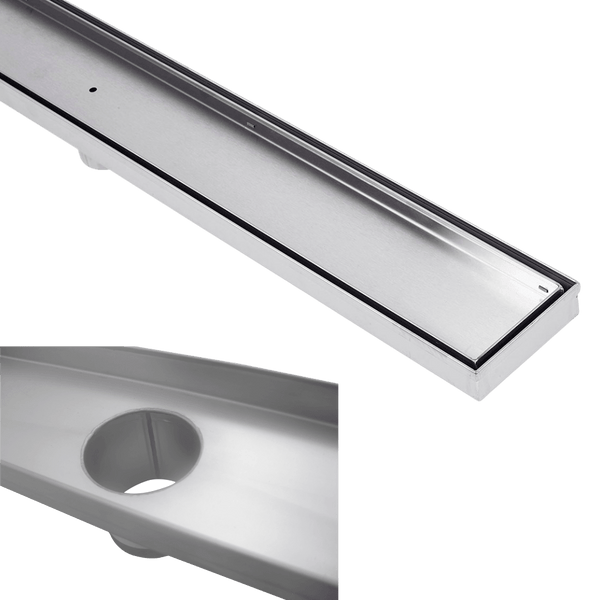

Tile Insert Stainless Steel Shower Grate & Drain - 100 x 30mm

SKU: 6030CT
Stainless Steel Shower Drain & Grate (100mm x 30mm Wide) - Tile Insert - Steel Builders
Stainless Steel Shower Drain & Grate (100mm x 30mm Wide) - Tile Insert - Steel Builders
Stainless Steel Shower Drain & Grate (100mm x 30mm Wide) - Tile Insert - Steel Builders
Stainless Steel Shower Drain & Grate (100mm x 30mm Wide) - Tile Insert - Steel Builders
Stainless Steel Shower Drain & Grate (100mm x 30mm Wide) - Tile Insert - Steel Builders
Stainless Steel Shower Drain & Grate (100mm x 30mm Wide) - Tile Insert - Steel Builders
Stainless Steel Shower Drain & Grate (100mm x 30mm Wide) - Tile Insert - Steel Builders
Stainless Steel Shower Drain & Grate (100mm x 30mm Wide) - Tile Insert - Steel Builders
Stainless Steel Shower Drain & Grate (100mm x 30mm Wide) - Tile Insert - Steel Builders
Stainless Steel Shower Drain & Grate (100mm x 30mm Wide) - Tile Insert - Steel Builders
Stainless Steel Shower Drain & Grate (100mm x 30mm Wide) - Tile Insert - Steel Builders
Stainless Steel Shower Drain & Grate (100mm x 30mm Wide) - Tile Insert - Steel Builders

Tile Insert Stainless Steel Shower Grate & Drain - 100 x 30mm

SKU: 6030CT
Regular price $290.00
/
Length
Outlet Position
Tax included. Shipping calculated at checkout.
  • 316 Stainless Steel
  • Free In-Store Pickup from our Belmore Warehouse
  • Reliable Shipping Australia-Wide
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way
  • This is an Internal Shower Grate.
  • Proudly Australian Designed and made to Australian Standards
  • If a standard grate isn't suitable, please see our Custom Shower Grates.

Aqualuna Drains - Stainless Steel Grates and Drains

  • Grate top is made from 1.5mm - 304 stainless steel.
  • Our Heelguard pattern grates are made from 3mm Wedge Wire welded with cross braces and full edge bars around the perimetre.

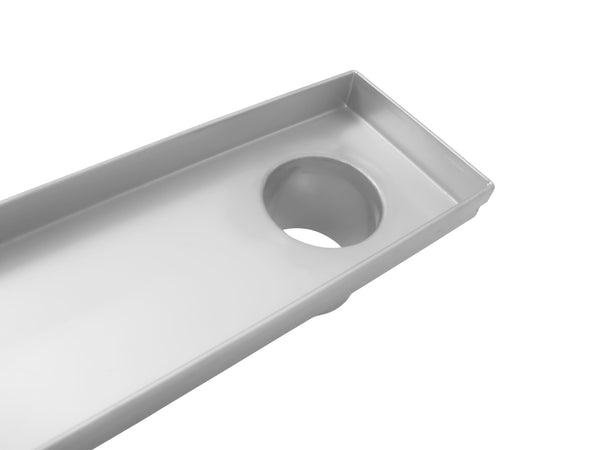

  • Our drain bases come with folds in base to allow water to flow directly to outlet.

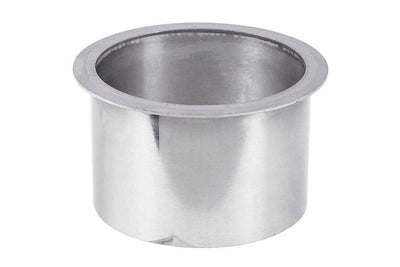

  • Outlet is 50.8 OD. Outlet is in either the centre or end of the drain.
  • All drain bases are fully welded and made from 304 stainless steel.
  • DIY or customs do not have folds in the base towards the outlet which is weled onto the base.

When ordering, first choose your length. After choosing your length, then choose your width, pattern and outlets.

Various different lengths:

  • 600mm all the way up to 1800mm
  • We also have longer lengths available as well as custom lengths.

A range of different widths:

  • 70mm, 85mm, 100mm

Depending on the width, various Depths:

  • 22mm, 25mm, 30mm

*Tile Inserts in 100mm wide x 30mm deep

*Tile Inserts in 70mm wide x 25mm deep

Range of Outlet sizes, positions, DIY and custom:

Depending on the grate selected, you may have the option of

  • Centre Outlet:50mm / 80mm Outlet in Centre of Drain
  • End Outlet - 50mm from the end to the centre of the drain
  • Custom Outlet: 38mm, 50mm, 76mm, 80mm, 95mm outlet options to be welded at the position you request
  • DIY: Buy the outlet loose and either weld or glue it in where you like

The advantages of our Stainless Steel Heelguard include:

  • 3mm Wedge Wire with 4mm Aperture
  • 5mm (x20mm deep) edge bar all the way around the grate - eliminating any sharp edges
  • Cross bars every 25mm, not touching base of drain the base of the drains allowing plenty of water flow
  • Tapered cross bars reduces the buildup of dirt & grime
  • Heel & Pet Friendly

304 Stainless Steel:

  • This product is made from 304 stainless steel which is recommended to be used internally.
  • 304 stainless steel is typically used in bathrooms, showers, laundries or any other internal use.

How to Install Shower Drain:

  • Shower Drain Installation / VID
  • Shower Drain Installation - Timbre Flooring / PDF - JPG
  • Shower Drain Installation - Concrete Flooring / PDF - JPG

Download Brochure

To find our more information on this and other products visit either the Brochures or Drawings page.

Stainless Steel Grates & Drains Maintenance: Download PDF

Shower Drain Warranty: Download PDF

So long as this item is in stock, its is usually ready to dispatch next-day. (excludes custom items)

This item is stocked and shipped from our Belmore Warehouse.

For more information, visit our Delivery FAQs page.
