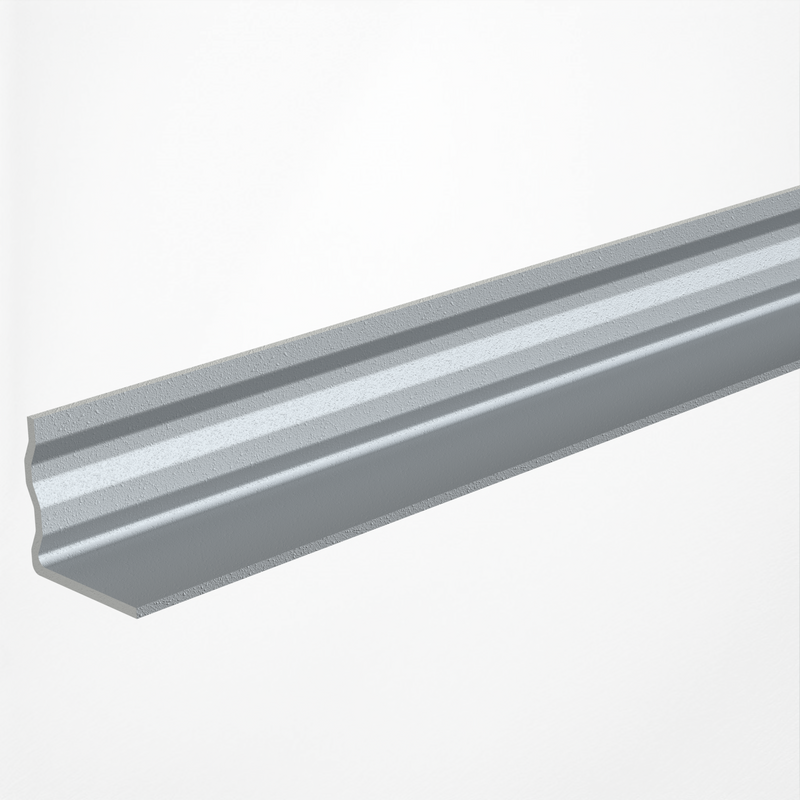

Name: Smart Lintel™ - R4 Epoxy Coated (Double Ribbed) - 150mm x 100mm x 6mm
Brand: Both
SKU: 150B-1800+EPOXY
Price: 169.15 AUD
Availability: InStock

Smart Lintel™ - R4 Epoxy Coated (Double Ribbed) - 150mm x 100mm x 6mm

R4 Epoxy Coated - Made For R4 Severe Marine Environments

Made to Order

Lead Time - 7 Days

Reliable Shipping Across NSW & ACT

In stock, ready to ship
Inventory on the way

Price

Quantity

Tax included. Shipping calculated at checkout.

[{"id":49639234273581,"title":"150mm x 100mm x 6mm \/ 1800mm","option1":"150mm x 100mm x 6mm","option2":"1800mm","option3":null,"sku":"150B-1800+EPOXY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Smart Lintel™ - R4 Epoxy Coated (Double Ribbed) - 150mm x 100mm x 6mm - 150mm x 100mm x 6mm \/ 1800mm","public_title":"150mm x 100mm x 6mm \/ 1800mm","options":["150mm x 100mm x 6mm","1800mm"],"price":16915,"weight":19000,"compare_at_price":7696,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":49639234306349,"title":"150mm x 100mm x 6mm \/ 2100mm","option1":"150mm x 100mm x 6mm","option2":"2100mm","option3":null,"sku":"150B-2100+EPOXY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Smart Lintel™ - R4 Epoxy Coated (Double Ribbed) - 150mm x 100mm x 6mm - 150mm x 100mm x 6mm \/ 2100mm","public_title":"150mm x 100mm x 6mm \/ 2100mm","options":["150mm x 100mm x 6mm","2100mm"],"price":19734,"weight":22100,"compare_at_price":8980,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":49639234339117,"title":"150mm x 100mm x 6mm \/ 2400mm","option1":"150mm x 100mm x 6mm","option2":"2400mm","option3":null,"sku":"150B-2400+EPOXY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Smart Lintel™ - R4 Epoxy Coated (Double Ribbed) - 150mm x 100mm x 6mm - 150mm x 100mm x 6mm \/ 2400mm","public_title":"150mm x 100mm x 6mm \/ 2400mm","options":["150mm x 100mm x 6mm","2400mm"],"price":22553,"weight":25200,"compare_at_price":10260,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":49639234371885,"title":"150mm x 100mm x 6mm \/ 2700mm","option1":"150mm x 100mm x 6mm","option2":"2700mm","option3":null,"sku":"150B-2700+EPOXY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Smart Lintel™ - R4 Epoxy Coated (Double Ribbed) - 150mm x 100mm x 6mm - 150mm x 100mm x 6mm \/ 2700mm","public_title":"150mm x 100mm x 6mm \/ 2700mm","options":["150mm x 100mm x 6mm","2700mm"],"price":25372,"weight":28400,"compare_at_price":11540,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":49639234404653,"title":"150mm x 100mm x 6mm \/ 3000mm","option1":"150mm x 100mm x 6mm","option2":"3000mm","option3":null,"sku":"150B-3000+EPOXY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Smart Lintel™ - R4 Epoxy Coated (Double Ribbed) - 150mm x 100mm x 6mm - 150mm x 100mm x 6mm \/ 3000mm","public_title":"150mm x 100mm x 6mm \/ 3000mm","options":["150mm x 100mm x 6mm","3000mm"],"price":28191,"weight":31600,"compare_at_price":12830,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":49639234437421,"title":"150mm x 100mm x 6mm \/ 3300mm","option1":"150mm x 100mm x 6mm","option2":"3300mm","option3":null,"sku":"150B-3300+EPOXY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Smart Lintel™ - R4 Epoxy Coated (Double Ribbed) - 150mm x 100mm x 6mm - 150mm x 100mm x 6mm \/ 3300mm","public_title":"150mm x 100mm x 6mm \/ 3300mm","options":["150mm x 100mm x 6mm","3300mm"],"price":31010,"weight":34700,"compare_at_price":14110,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":49639234470189,"title":"150mm x 100mm x 6mm \/ 3600mm","option1":"150mm x 100mm x 6mm","option2":"3600mm","option3":null,"sku":"150B-3600+EPOXY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Smart Lintel™ - R4 Epoxy Coated (Double Ribbed) - 150mm x 100mm x 6mm - 150mm x 100mm x 6mm \/ 3600mm","public_title":"150mm x 100mm x 6mm \/ 3600mm","options":["150mm x 100mm x 6mm","3600mm"],"price":33829,"weight":37900,"compare_at_price":15390,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":49639234502957,"title":"150mm x 100mm x 6mm \/ 4000mm","option1":"150mm x 100mm x 6mm","option2":"4000mm","option3":null,"sku":"150B-4000+EPOXY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Smart Lintel™ - R4 Epoxy Coated (Double Ribbed) - 150mm x 100mm x 6mm - 150mm x 100mm x 6mm \/ 4000mm","public_title":"150mm x 100mm x 6mm \/ 4000mm","options":["150mm x 100mm x 6mm","4000mm"],"price":37588,"weight":41700,"compare_at_price":17100,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

Proudly Australian Designed and made to Australian Standards

Smart Angle™ - R4 Epoxy Coated (Double Ribbed) - They are Hot-Dip Galvanised and R4 epoxy coated complying with AS 2699.3, durability class ‘R4’ to support brickwork spanning over openings. They are available in various lengths, widths, and thicknesses.

Product Features:

Light weight when compared to traditional Concrete
Available in a range of sizes
High Durability: Achieves durability class 'R4', suitable for marine exposure (C4 and C5 corrosivity categories).
Superior Coating: R4 duplex coating is equivalent to 316 Stainless Steel.
Hot-Dip Galvanised: Complies with AS/NZS 4680 standards.
Extra Protection: Overcoated with two protective paint layers, meeting AS 2699.3 durability class 'R4'.
Clear Identification: Stenciled for visibility after installation and metal stamped before galvanising.
Labelled & Barcoded: For easy tracking and identification.
Standards Compliance: Meets AS 2699.3:2020, AS 4773.2:2015, and AS 3700:2018 requirements.
Australian Made: Designed and manufactured in Australia.
Product Warranty: Full product warranty. See website for terms and conditions.

Section Properties

DIMENSIONS		SECTION PROPERTIES
	Mass per Metre	Gross Section Area	About x-axis		About y-axis		About n-axis	About p-axis
Designation		Ag	Ix	Zx	Iy	Zy	In	Ip
	kg/m	mm^2	10^6 mm^4	10^3 mm^3	10^6 mm^4	10^3 mm^3	10^6 mm^4	10^6 mm^4
100 x 100 x 6 B-Bar	8.19	1164	1.83	25.84	0.46	11.97	1.14	1.14
150 x 100 x 6 B-bar	10.53	1464	4.05	39.4	0.72	13.39	3.49	1.29

100 x 100 x 6.0 - Safe load Table

Angle	Span (mm)	900	1200	1500	1800	2100	2400	2700
100 x 100 x 6.0	Bar Length(mm)	1200	1500	1800	2100	2400	2700	3000
9.42kg/m	UDL (kg/m)	2550	1520	995	601	390	260	182
	Point Load(kg)	1350	1035	805	655	535	415	325

150 x 100 x 6.0 - Safe load Table

Angle	Span (mm)	1800	2100	2400	2700	3000	3300	3600	4000
150 x 100 x 6.0	Bar Length(mm)	2100	2400	2700	3000	3300	3600	3900	4300
11.78kg/m	UDL (kg/m)	1320	945	705	525	375	275	210	155
	Point Load(kg)	1301	1050	875	758	645	555	495	415

Note:

a minimum of three courses of bricks must be laid above the lintel beam.
Load limited by deflection of 1/600 span.
Yielding stress fy=235 Mpa, tensile strength fu=375Mpa for both legs
Calculate bar length is span+150mm each end.

Notes on Safe Load Tables for Budabar B Bars

The Buda B and R bars are imported from China, material used is Q235B, and here Q stands for yielding.
According to PRC National Standard GB700-88(previous version GB700-79 part A3 & C3), the minimum yielding point is 235Mpa for thicknesses less than 17mm, tensile strength is between 375-400MPa.

The B and R bars are simply supported at both ends.
The B and R bars loaded such that the load acts vertically and equally on both sides of the web.
Loads given are total (allowable) loads including lintel and brickwork.
UDL loads are constant along the length of the bar.
Point loads act at mid-span.
150mm minimum bearing support on to brickwork.
Hot-dip galvanising to AS / NZS 4680:2006.
Overcoated with two protective paint layers, meeting AS 2699.3 durability class 'R4'
Loads are in accordance with AS / NZS 1170.1:2002.

Download Brochure

To find our more information on this product visit either the Brochures or Drawings page.

Lintel Load Tables: Download PDF

Due to the nature of this item, we currently only ship this item to NSW and the ACT*. For delivery costs, please use the delivery calculator on the checkout page.

*Delivery to remote areas of NSW or ACT may not be suitable for our delivery trucks. Please contact us prior to ordering should you have any concerns.

This item is stocked at our St Marys and Belmore Warehouses.
