Smart™ R3 Render Bar Lintel | 150mm x 100mm x 6mm

Smart™ R3 Render Bar Lintel | 150mm x 100mm x 6mm

$73.91
Size
Length

The Smart R-Bar™ is an Australian designed lightweight lintel used for supporting brickwork over openings.

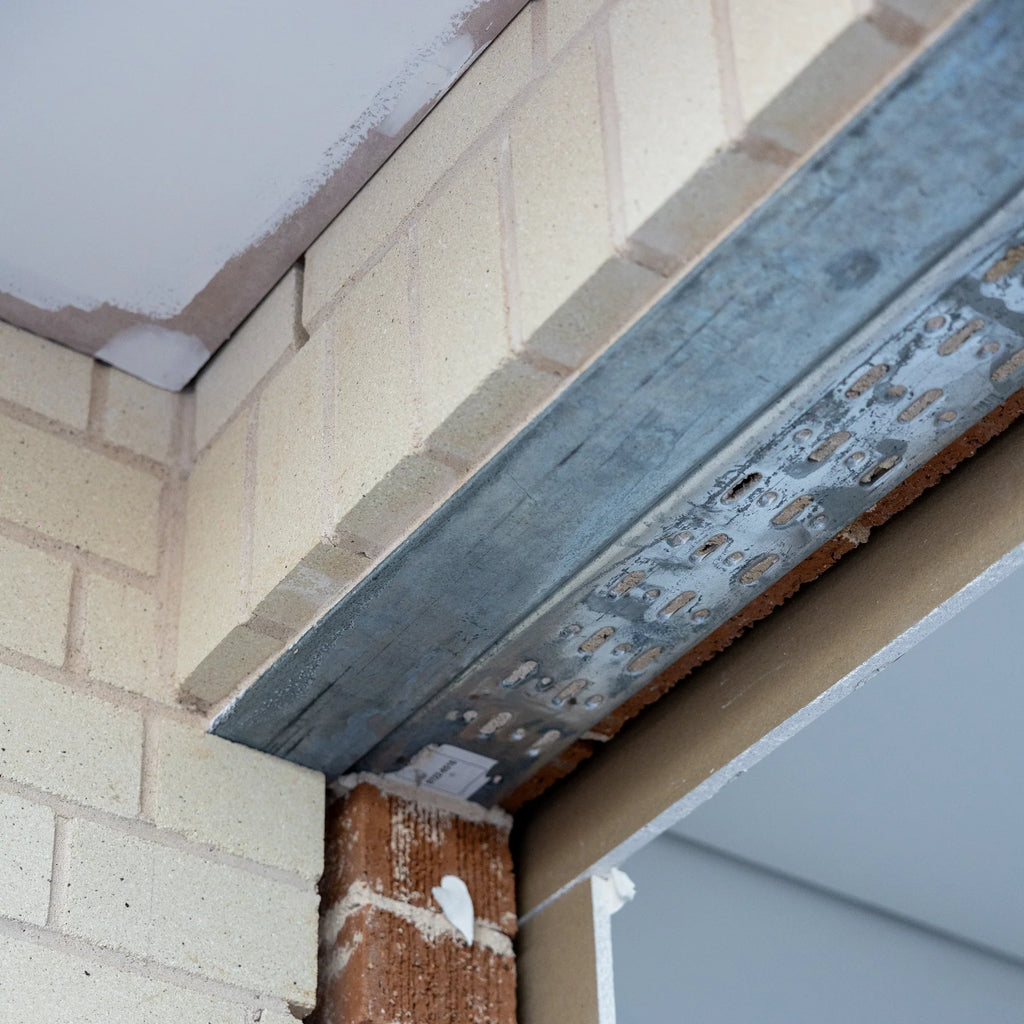

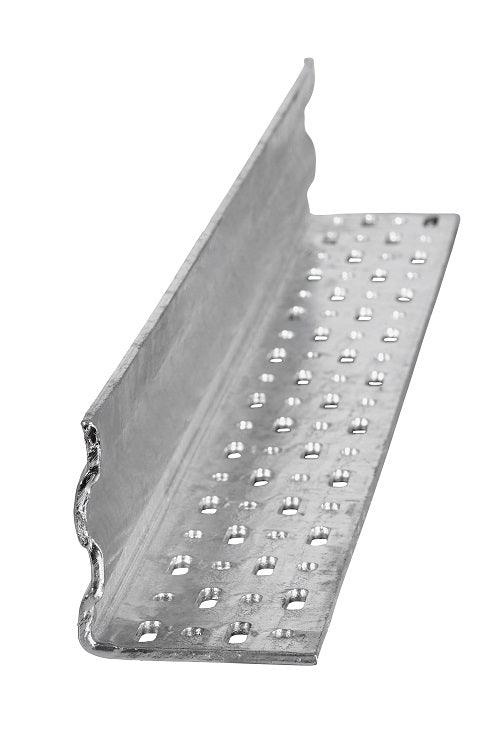

Smart R-Bars™ are suitable for applications where a Render Finish is required. One side has holes making it easier for the render to stick to the angle.

  • Load Tested in accordance with AS/NZS 1170.1:2002
  • Australian Design Mark No. 201215561
  • Cost advantages over other Render lintels.
  • Proudly Australian Designed and made to Australian Standards

Features are:

  • Hot Dip Galvanised to AS/NZ 4680:2006
  • R3 Durability Rating in accordance with AS/NZS 2699:2002
  • Light weight when compared to traditional Concrete/Brick Lintels
  • Available in a range of sizes.

Section Properties

 DIMENSIONS    SECTION PROPERTIES
  Mass per Metre  Gross Section Area About x-axis   About y-axis   About n-axis About p-axis
Designation     Ag Ix Zx  Iy Zy  In Ip
  kg/m   mm^2 10^6 mm^4 10^3 mm^3 10^6 mm^4  10^3 mm^3  10^6 mm^4  10^6 mm^4
100 x 100 x 6 Rendabar 7.92  942  1.36  18.78  0.38  8.82  0.98  0.75
150 x 100 x 6 Rendabar 9.75  1242  3.26  34.33  0.53  9  2.97  0.82

100 x 100 x 6.0 -Safe Load Table

R-bar  Span (mm) 900  1200  1500  1800  2100  2400
100 x 100 x 6.0  Bar Length(mm) 1200  1500  1800  2100  2400  2700
7.92kg/m  UDL (kg/m) 1950 1145 755   435  285  185
   Point Load(kg) 1015  775  605  505  405  305

150 x 100 x 6.0 -Safe load Table

R-bar  Span (mm)  1800  2100  2400  2700  3000  3300  3600
150 x 100 x 6.0 Bar Length(mm)   2100  2400  2700  3000  3300  3600  3900
9.75kg/m  UDL (kg/m) 1035  715  475  335  247 185   145
   Point Load(kg)  1005  825  686  585 505   405  342

Note:

  1. a minimum of three courses of bricks must be laid above the lintel beam.
  2. Load limited by deflection of 1/600 span.
  3. Yielding stress fy=235 Mpa, tensile strength fu=375Mpa for both legs.
  4. Mass per metre calculation is based on 7850kg/m^3.
  5. Calculate bar length is span+150mm each end.

Notes on Safe Load Tables

Tis product is imported from China, material used is Q235B, and here Q stands for yielding.
According to PRC National Standard GB700-88(previous version GB700-79 part A3 & C3), the minimum yielding point is 235Mpa for thicknesses less than 17mm, tensile strength is between 375-400MPa.

  • The B and R bars are simply supported at both ends.
  • The B and R bars loaded such that the load acts vertically and equally on both sides of the web.
  • Loads given are total (allowable) loads including lintel and brickwork.
  • UDL loads are constant along the length of the bar.
  • Point loads act at mid-span.
  • 150mm minimum bearing support on to brickwork.
  • Hot-dip galvanising to AS / NZS 4680:2006.
  • Loads are in accordance with AS / NZS 1170.1:2002.
